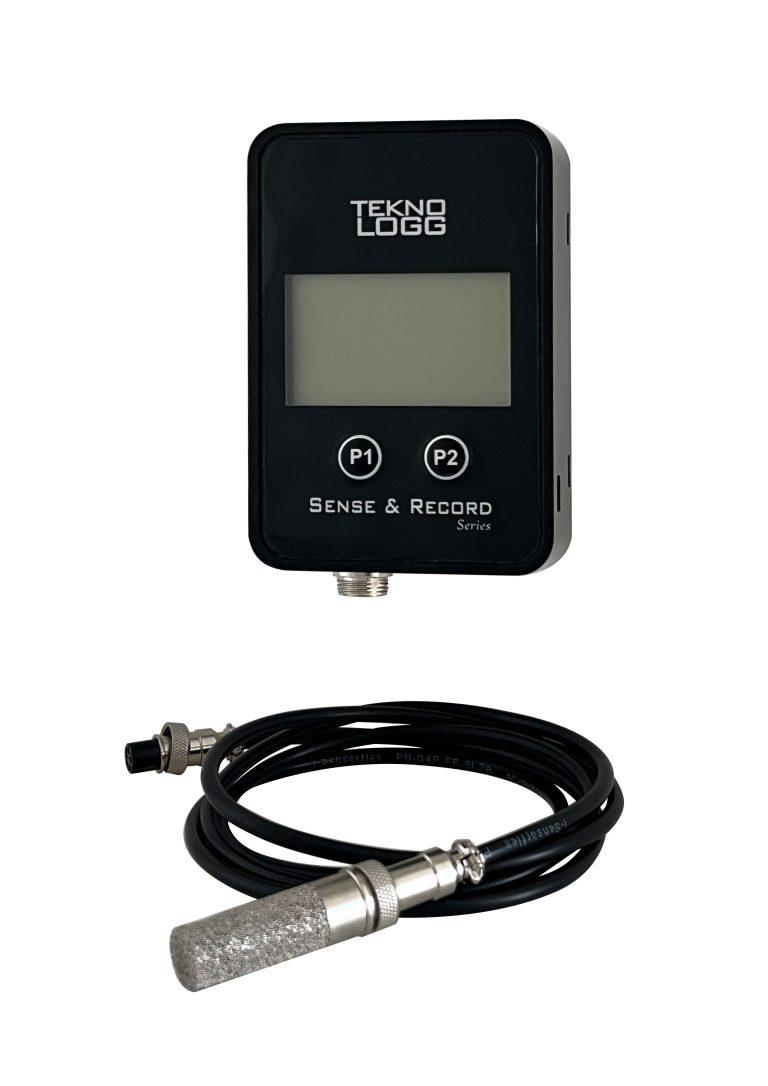

The Teknologg TL-130 WIFI data logger with External Probe are used for measuring, displaying and recording of temperature and humidity data.
Features:
- Long term stability
- High Accuracy
- WIFI Support(TCP/IOT Device)
- CSV File Format for Data Export
- Optional ISO-17025 accredited calibration certificate.
- Remote Monitoring
- Battery Operation
- Capability to Calibration up to 20 Reference points
- Internal Memory with External Micro SD support
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Teknologg TL-130 WIFI data logger with External Probe are used for measuring, displaying and recording of temperature and humidity data.
Device Supports TCP/IP connection for monitoring on local networks and also can be setup to the Teknologg cloud servers for remote monitoring.
This device features calibration capability which can be tested and calibrated up to 20 reference points in calibration laboratories. by applying calibration points and actual reading values on this points using Daloco Software, device automatically corrects for any deviation and errors this feature guarantees long term operation with required accuracy.
Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is Teknologg another product which is used to receive data by using TCP/IP connection or cloud service.
Temperature Characteristic
Probe Type External
Measuring range -40 ~ 90 °C
Accuracy typ. ±0.4 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
Humidity Characteristic
Probe Type External sensor
Measuring range 0 ~ 100%
Not for use in condensing conditions
Accuracy typ. ±3% R.H
Repeatability 0.1 % R.H
Resolution 0.1 % R.H
Long-term drift : <0.25 %RH/yr.
WIFI Characteristics
Frequency 2.4GHz EEE802.11b/g/n
Output Power +20dbm for 11b mode
Receiver Sensitivity -94 dBm
WIFI Modes Station/SoftAP
General Parameters:
Measure Time 1 seconds ~ 24 hours (configured by software)
Battery 1*3.6v (14500) Lithium-ion Rechargeable Battery
Memory Internal:70000 Temperature & humidity Records
External micro SD support up to 32GB
Logging Time Interval 3 seconds ~ 24 hours (configured by software)
Interface Mini USB-B Port
Dimensions 110x76x27mm
| Product Number | Details |
|---|---|
| TL130.11.1 | Battery Type: Li-Ion Size:14500 Researchable |
| TL130.11.2 | Battery not shipped with Device Supports Battery Type: Li-Ion Size:14500 Researchable |
