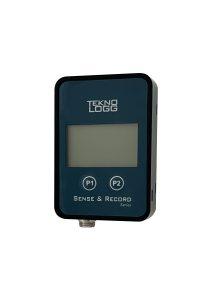

The Teknologg Sense & Record Series TL-150 WIFI data logger with built in and external sensors are used for measuring, displaying and storing temperature data.
Features:
- Long term stability
- High Accuracy
- Battery Operation
- Optional ISO-17025 accredited calibration certificate.
- External Silicon Cable Temperature Probe
- WIFI Support
- Capability to Calibration up to 20 Reference points
- Remote Monitoring
- Internal Memory with External Micro SD support
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Teknologg Sense & Record Series TL-150 data logger with built in and external sensors are used for measuring, displaying and recording of temperature data.

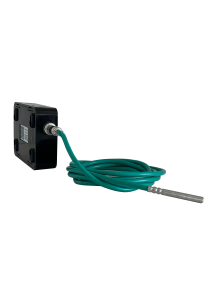

External thermistor probe with silicon cable is suitable for temperature measurement in different environments and temperature variations.
This device features calibration capability which can be tested and calibrated up to 20 reference points in calibration laboratories. by applying calibration points and actual reading values on these points using Daloco Software, device automatically corrects for any deviation and errors this feature guarantees long term operation with required accuracy.
Device Supports TCP/IP connection for monitoring on local networks and also can be setup to the Teknologg cloud servers for remote monitoring.
Maximum and Minimum values from last reset can be shown on LCD by key functions.
Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
The Smart Logg mobile application is Teknologg another product which is used to receive data by using TCP/IP connection or cloud service.
Temperature 1 Characteristic
Probe Type Internal NTC
Measuring range -20 ~ 70 °C
Not for use in condensing conditions
Accuracy typ. ±0.5 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
Temperature 2 Characteristic
Probe Type External NTC Thermistor
Measuring range -40 ~ 150 °C
Accuracy ±0.5 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
WIFI Characteristics
Frequency 2.4GHz EEE802.11b/g/n
Output Power +20dbm for 11b mode
Receiver Sensitivity -94 dBm
WIFI Modes Station/SoftAP
General Parameters:
Measure Time 1 seconds ~ 24 hours (configured by software)
Battery 1*3.6v (14500) Lithium-ion Rechargeable Battery
Memory Internal:70000 Records (2 Channel)
External micro SD support up to 32GB
Logging Time Interval 3 seconds ~ 24 hours (configured by software)
needs to consider WIFI data transmission time
Interface Mini USB-B Port
Dimensions 110x76x27mm
| Product Number | Details |
|---|---|
| TL150.11.1 | Battery Type: Li-Ion Size:14500 Rechargeable |
| TL150.11.2 | Battery not shipped with Device Supported Battery Type: Li-Ion Size:14500 Rechargeable |
