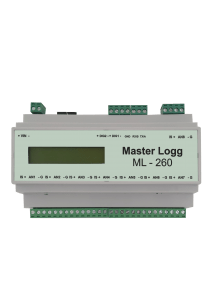

The Master Logg ML-260 WIFI data logger with universal inputs is the perfect solutions for industrial and automation applications.
Features:
- Universal Analog Inputs
- High Performance
- Simultaneous Measurement Of Channels
- High Accuracy
- Gain Selectable on Channels
- WIFI Support
- Remote Monitoring
- Data Record on Micro SD
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Master Logg ML-260 wifi data
logger with universal inputs is the perfect solutions for industrial and
automation applications.
The Master Logg analog inputs are configurable to measure
voltage, current, Pt100 & Thermocouples, also digital channels can be used
to detect pulse changes and frequency measurements.
Master Logg software is used for data
read out, device configuration, reading real time values and live charting.
Additional eight channel Relay Control
Unit can be ordered to control peripherals in case of alarm on any input
channels.
Low noise internal amplifier allows
users to select gains for each input channels from 1 ~ 128.
Measured signal values automatically
convert to engineering units as user configuration.
Device Supports TCP/IP connection for
monitoring on local networks and also can be setup to the Teknologg cloud
servers for remote monitoring.
The Smart Logg mobile application is
Teknologg another product which is used to receive data by using TCP/IP
connection or cloud service.
General Parameters:
| Channel Numbers | 8-Analog input, 2-Digital input, 8-Relay output |
| Analog Inputs | DC Current: 0~24 ma DC Voltage: Class A: 0~ 10 V Class B: 0~ 5 V PT100-Thermocouple |
| Conversion Resolution | Class A: 24-Bit Class B: 16-Bit |
| Digital Inputs | Pulse Max 20VDC Frequency up to 10Khz |
| sampling rate | Class A: 100 Hz Class B: 4 Hz |
| Power | 12 ~ 15 VDC |
| Memory | Internal:16000 Records External micro SD up to 32GB |
| Record Time Interval | Class A:10 mili seconds ~ 24 hours Class B:250 mili seconds ~ 24 hours (configured by software) |
| PC Interface | USB-B Port |
| Serial Interface | TL-270.10: – TL-270.11: RS485 Modbus TL-270.12: RS232 General TL-270.13: RS232 GSM Modem |
| Working Temperature | -30 ~ 80°C Not for use in condensing conditions |
| Dimensions | 157x99x45mm |
| Frequency | 2.4GHz EEE802.11b/g/n |
| Output Power | +20dbm for 11b mode |
| Receiver Sensitivity | -94 dBm |
| WIFI Modes | Station/SoftAP |
Voltage Characteristic
Input Ranges Single Ended: 0 ~ 5 VDC
unipolar/bipolar:
± 2.5VDC/Gain
For example Gain=128
Input Rage= ±19.53mVDC
Gain Select 1~128
Noise RMS 5.1 μV @ Gain=1
2.5 μV @ Gain=2
1.2 μV @ Gain=4
0.7 μV @ Gain=8~128
Resolution 0.1 mv @ 0 ~ 5 VDC
10 μV @ ± 2.5V
5 μV @ ± 1.25V
1 μV @ ± 300 mV
Accuracy 5 mV @ 0 ~ 5 VDC
100 μV @ ± 2.5V
50 μV @ ± 1.25V
10 μV @ ± 300 mV
Current Characteristic
Measure Range 0 ~ 25mA
Resolution 0.1 μA
Accuracy 3 μA
Input Impedance 100 Ω
RTD Characteristic
Probe Type PT100
2-3-4 wire connection
Resolution 0.01 °C
Accuracy Typical 0.5°C
Thermocouple Measuring Characteristic
Probe Type J,R,S,B,N,K,E,T
Resolution 0.1 °C
Typical Accuracy 0.5°C @ J,N,K,E,T
1.2°C @ R,S,B
Check more detail on the data sheet
| Product No. | Details |
|---|---|
| ML-260.20.1 | Master Logg Universal Input WIFI Data Logger with RS232 Interface |
| ML-260.20.2 | Master Logg universal Input WIFI Data Logger with RS485 Interface |
| MLC-08 | 8 channel Relay Controller for Master Logg Connects using RS485 Interface |
