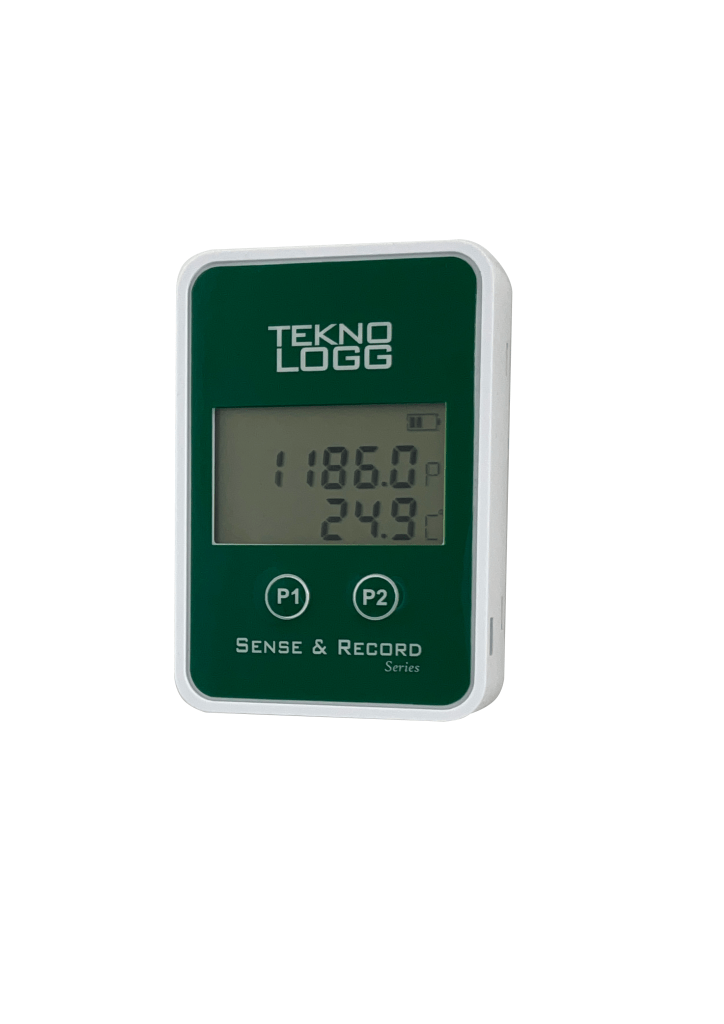

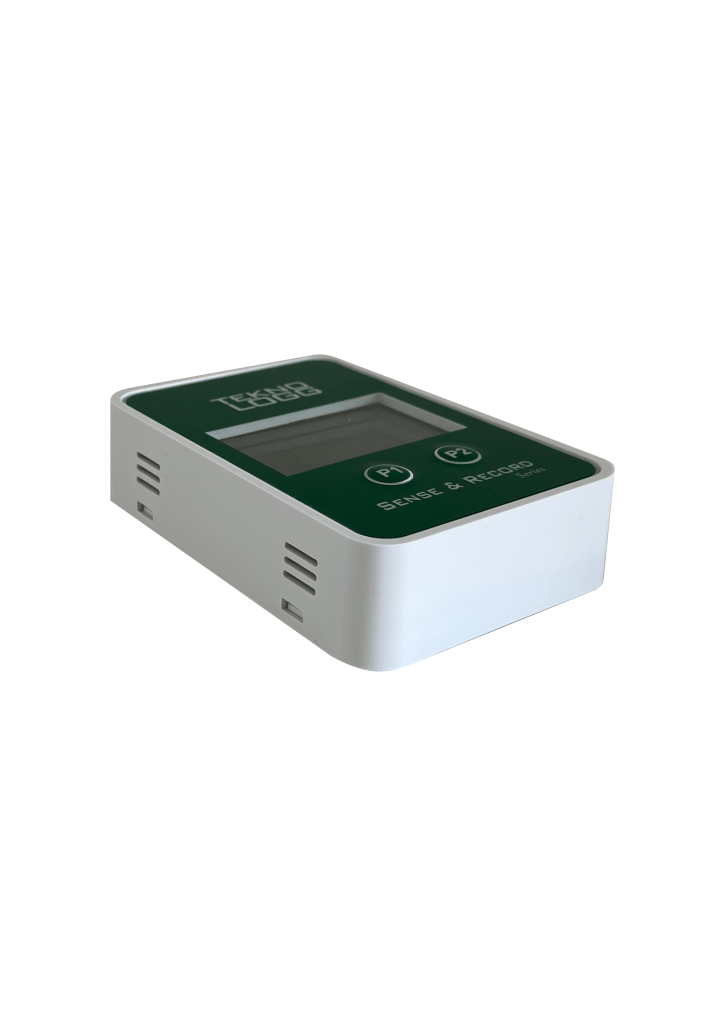

The Teknologg TL-160 WIFI data logger with built in sensors are used for measuring, displaying and recording CO2, temperature, humidity & air pressure data.
Features:
- Long term stability
- Photo acoustic NDIR CO2 sensor
- Large output range
- WIFI Support (TCP/IOT Device)
- 4 Parameters in one device
- Optional ISO-17025 accredited calibration certificate.
- Temperature and altitude compensation
- High Accuracy
- Capability to Calibration up to 20 Reference points
- Battery Operation
- Internal Memory with External Micro SD support
- Programmable High and Low Alarms
- Real Time Data View in Software
- Alarm Display on LCD
The Teknologg TL-160 multi parameter data logger with built in sensors are used for measuring, displaying and storing CO2 levels, Temperature, Humidity & Air Pressure data.
TL-160 uses internal fast response photo acoustic NDIR CO2 sensor. CO2 values are compensated over ambient pressure, temperature & Humidity changes.

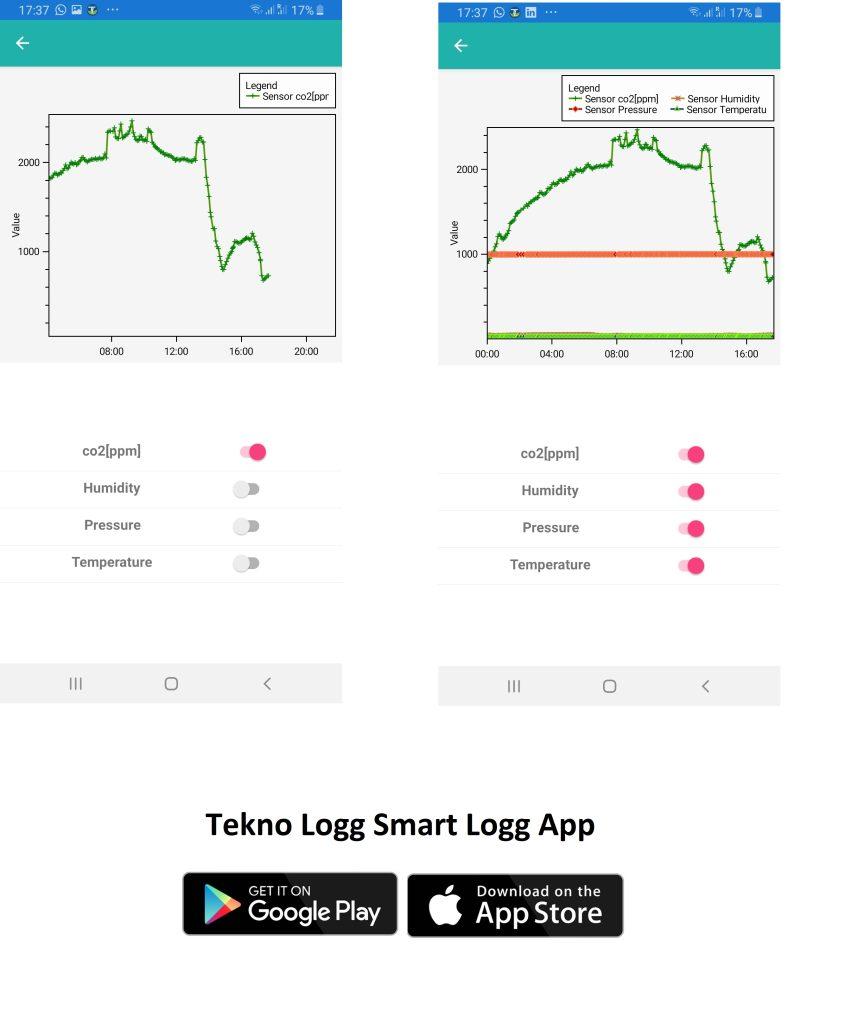

Device Supports TCP/IP connection for monitoring on local networks and also can be setup to the Teknologg cloud servers for remote monitoring. Smartlogg mobile app is available in google play and app store.
Maximum and Minimum values from last reset can be shown on LCD by key functions.

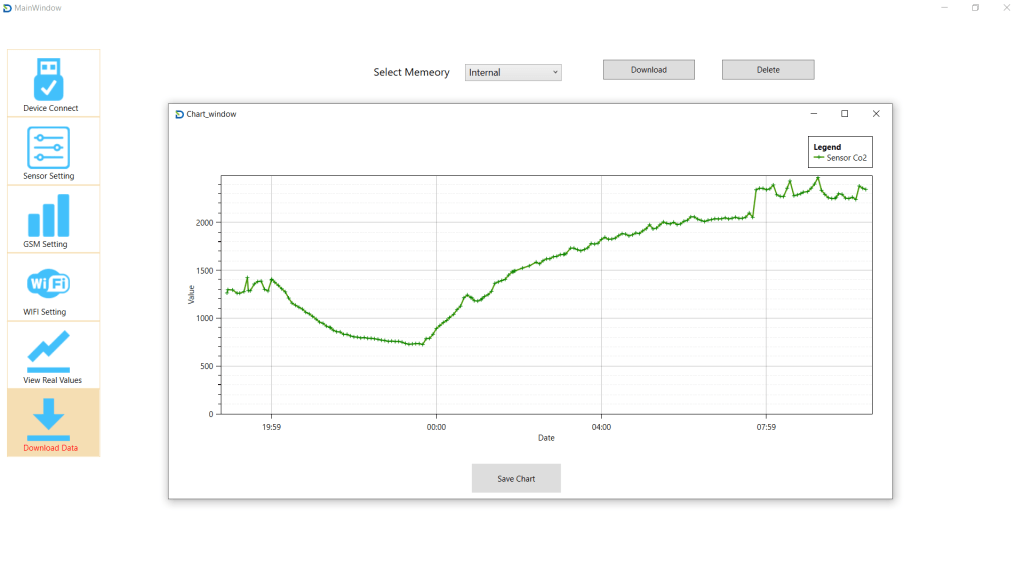

Stored values can be transferred to pc via USB port and Daloco software. Device configuration, reading real values and live charting can be done by easy to use Daloco software.
This device features calibration capability which can be tested and calibrated up to 20 reference points in calibration laboratories. by applying calibration points and actual reading values on this points using Daloco Software, device automatically corrects for any deviation and errors, this feature guarantees long term operation with required accuracy.
| CO2 | Characteristics |
|---|---|
| Probe Type | Internal Photo acoustic sensor |
| Measuring range | 0 ~ 40000 ppm |
| Accuracy | Class A: ±(40 ppm + 5% of reading) 0 ~ 5000ppm Class B:± (50 ppm + 5% of reading) 0 ~ 2000ppm Please refer to ordering information |
| Repeatability | ±10 ppm |
| Response Time | 60 S |
| Resolution | 1 ppm |
| Long-term drift | ± (5 ppm + 0.5 % of reading) |
Temperature Characteristic
Probe Type Internal Digital sensor
Measuring range -10 ~ 60 °C
Not for use in condensing conditions
Accuracy ±0.8 °C @ 15 ~ 35°C , ±1.5 °C @-10…60 °C
Repeatability ±0.1 °C
Resolution 0.1 °C
Long-term drift <0.03 °C/yr.
Humidity Characteristic
Probe Type Internal sensor
Measuring range 0 ~ 100%
Not for use in condensing conditions
Accuracy typ. ±6% R.H
Repeatability 0.4 % R.H
Resolution 0.1 % R.H
Long-term drift : <0.25 %RH/yr.
Air Pressure Characteristic
Probe Type Internal sensor
Measuring range 300 ~ 1100 mbar
Not for use in condensing conditions
Accuracy ±1 mbar@ t>0
±1.7 mbar@[-20 ~ 0] °C
Repeatability 0.1 mbar
Resolution 0.1 mbar
WIFI Characteristics
Frequency 2.4GHz EEE802.11b/g/n
Output Power +20dbm for 11b mode
Receiver Sensitivity -94 dBm
WIFI Modes Station/SoftAP
General Parameters:
| Measure Time | 5 seconds ~ 24 hours (configured by software) |
| Battery | 1*3.6v (14500) Lithium-ion Rechargeable Battery |
| Memory | Internal:70000 Temperature & Co2 Records External micro SD support up to 32GB |
| Logging Time Interval | 5 seconds ~ 24 hours (configured by software) |
| Interface | Mini USB-B Port |
| Dimensions | 110x76x27mm |
| Product No. | Details |
|---|---|
| TL160.20.1 | Battery Type: Li-Ion Size:14500 CO2 Class A Sensor |
| TL160.20.2 | Battery not shipped with Device CO2 Class A Sensor |
| TL160.21.1 | Battery Type: Li-Ion Size:14500 Researchable CO2 Class B Sensor |
| TL160.21.2 | Battery not shipped with Device CO2 Class B Sensor |
